CE Certificate 3 axis cnc router machine woodworking cnc routerne
n SPECIFICATION

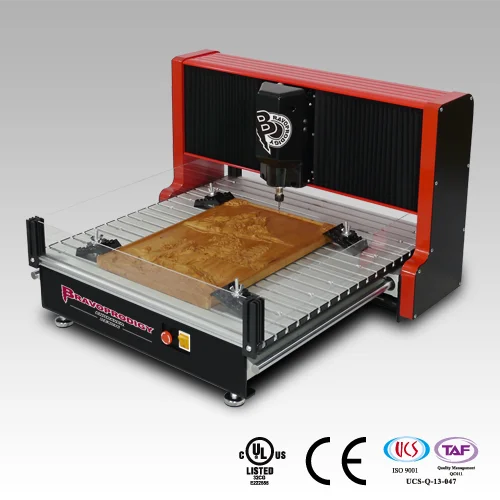

MODEL | BE4036 |
Table Size | X 535 × Y 600 mm ( 21.063 x 23.622 inch ) |
Table Load Weight | Max. 10 kgs ( 22.03 lbs ) |
Engraving Area | X410 × Y 370 × Z 70 mm ( 16.142 x 14.567 x 2.756 inch ) |
Max. Engraving Speed | 40~2500 mm/min ( 1.57~98.43 inch/min ) |
Engraving material | Plastic(ABS, Acrylic), Wood, Foam, Styrenefoam, Modeling Wax, Epoxy Tooling Board…etc |
Max. Material Thickness | 70 mm ( 2.76 inch ) |
Mechanical Positioning Resolution | 0.10 mm ( 0.004 inch ) |
Software Resolution | 0.02 mm ( 0.0008 inch ) |
Spindle Motor | 150W DC Brushless Motor |
Spindle Speed | 17000 RPM |
Tool Diameter | ER11 Collet - 4.0 mm |
Interface | USB 2.0 |
Power Supply | Input: AC 100~120V 50 / 60HZ Output: DC 24V 6.5A | Input: AC 220~240V 50 / 60HZ Output: DC 24V 6.5A |
Power Consumption | 3.0A | 2.0A |
Operating Noise Level | Stand By 39.6 dB(A) |
No-loading operation less than 66 dB(A) |
Machine Size | 626 × 615 × 421 mm ( 24.646 x 24.213 x 16.575 inch ) |
Net Weight | 38 kgs ( 84.45 lbs ) |
Operating Environment | temperatures 5~40 °C (41~104 °F) |
humidity 35~80% |
Accessories | Power Cord, USB 2.0 Cable, Controller, Wrench Set (For spindle x 1, For nut x 1), Silicone Nat, Tungsten Carbide Tool, Clamp set, Support Board, Thin adjust paper, BravoProdigy Software Installation Disc, Operating Instructions, Cut2D/Cut3D Software Installation Disc, Engraving Material, ER11 Collet. |
The shipping fee is just estimated, it depends on the real quotation.
n PACKAGING and SHIPPING
Our main products:

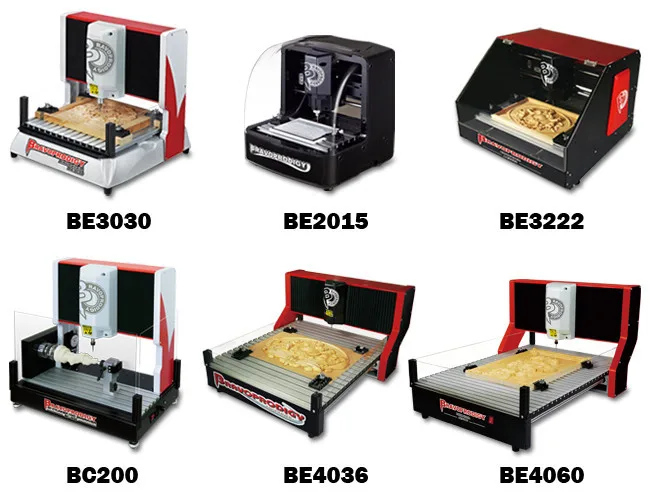

CNC engraver; CNC router; mini CNC; mini CNC engraver; mini CNC router; 3D cylinder CNC engraver;
acrylic engraver; 3D engraver; wood engraver; foam engraver.

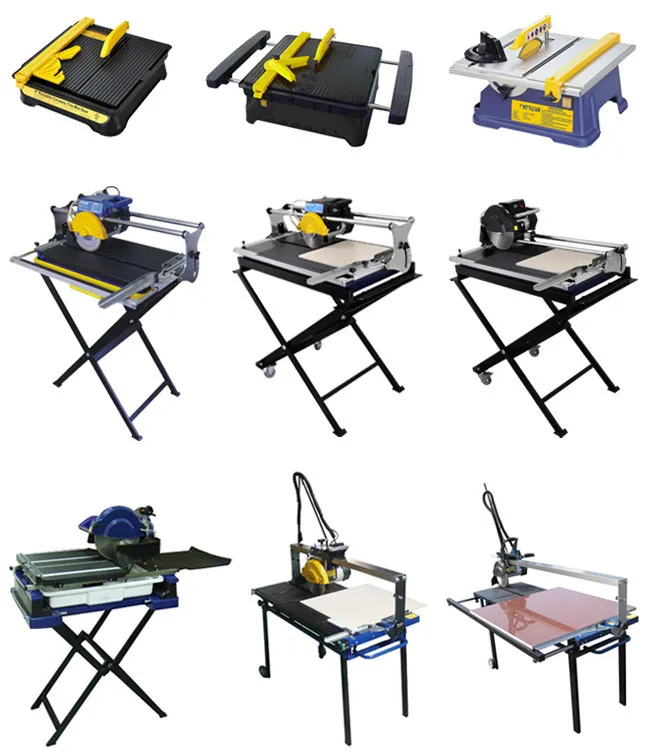

4 inch Tile Saw; 7 inch Tile Saw; 10 inch Tile Saw; Tile Cutter; Floor Stripper; Power Scraper.
Our advantage:
Advance tech, high quality product, competitive price, CE, UL, ISO Certification and best service.
Our Guarantee & After Sales Services:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or skype.
Agents Wanted:
We are looking for agents, you are welcome to inquire for further details.
Thank you very much.
